Overview

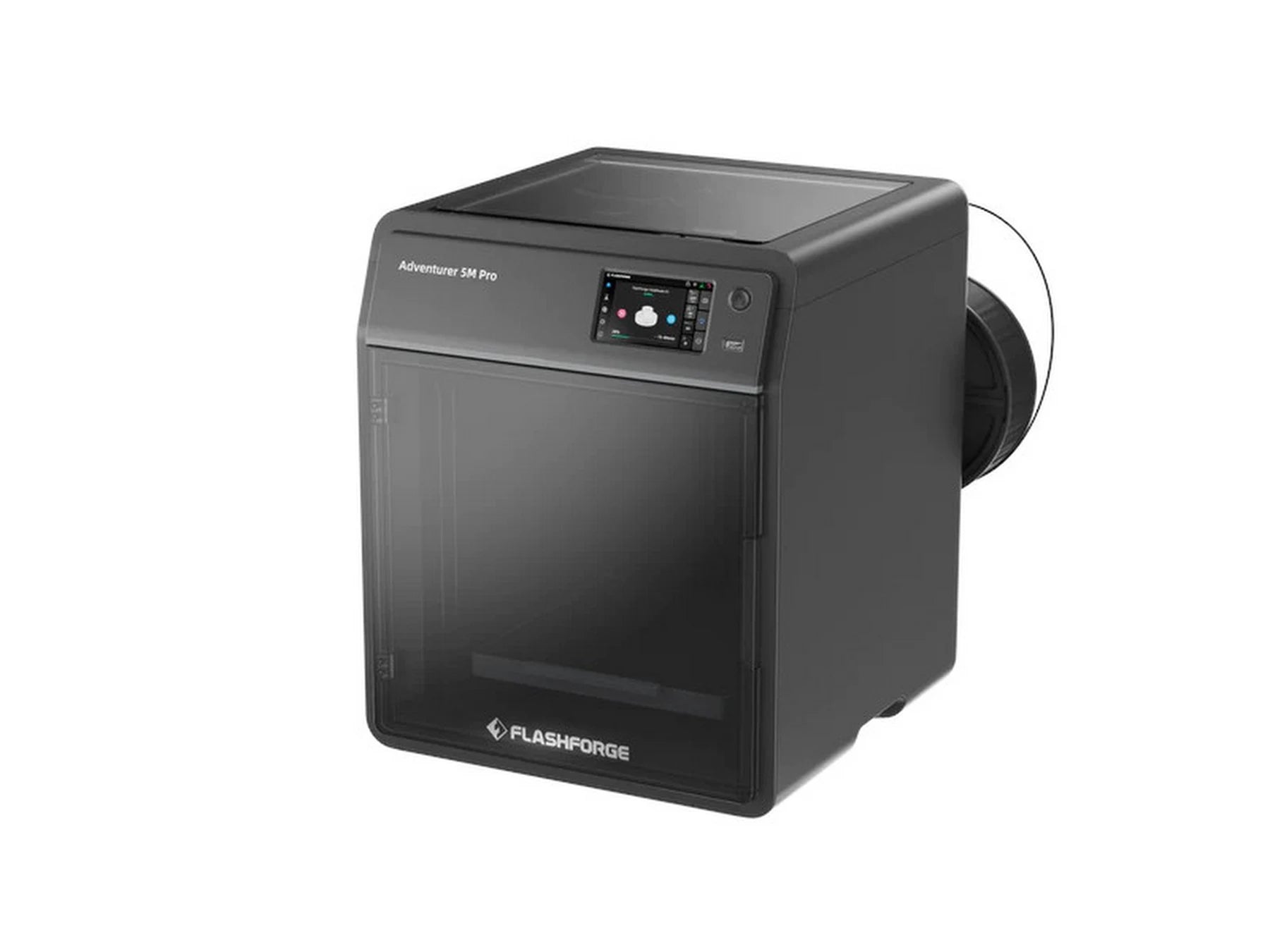

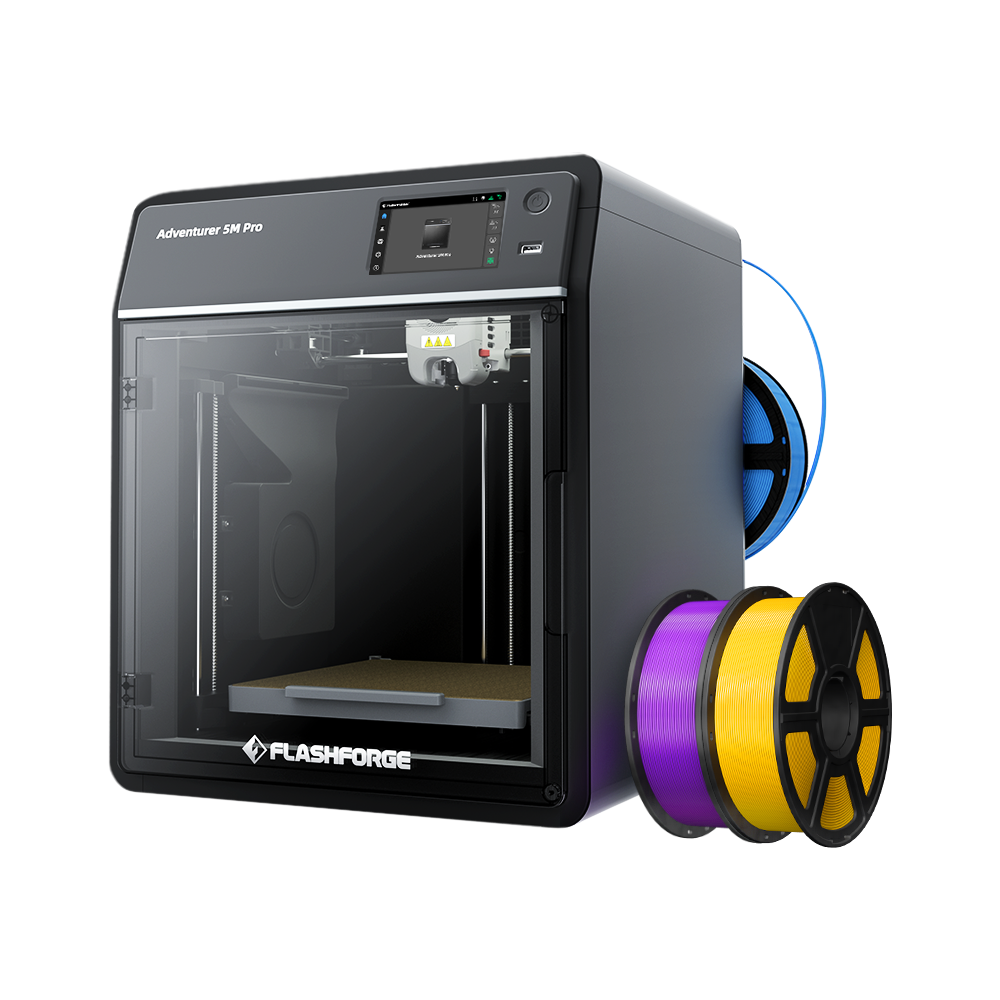

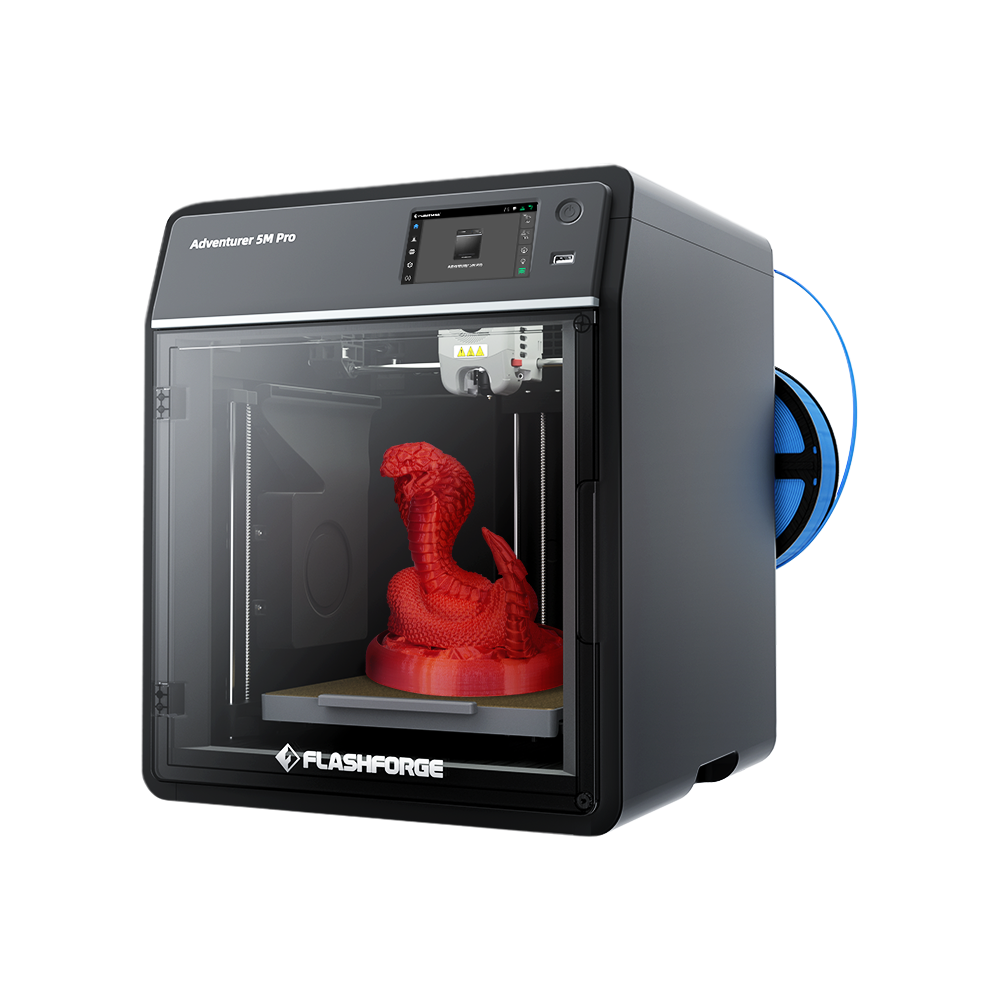

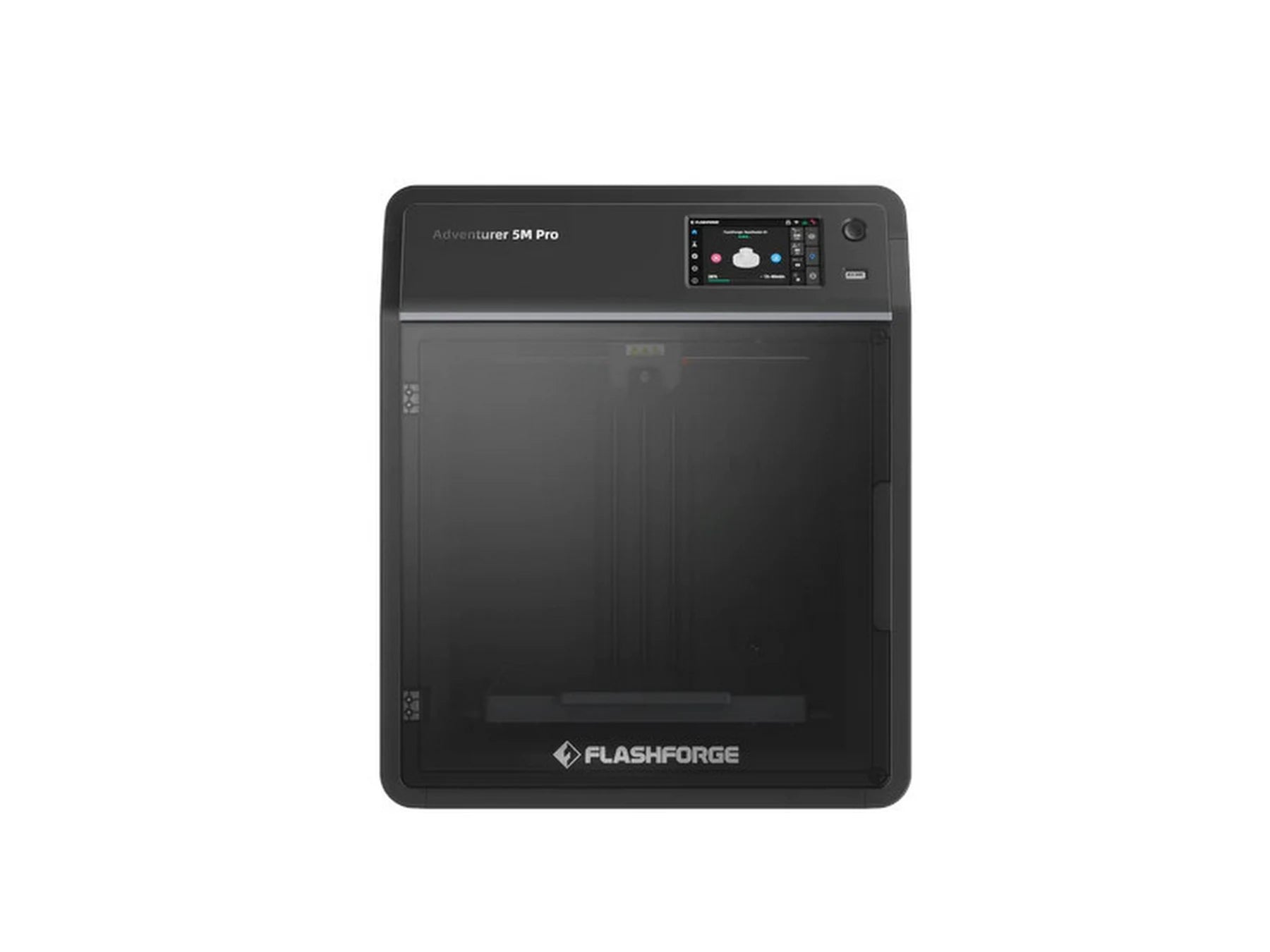

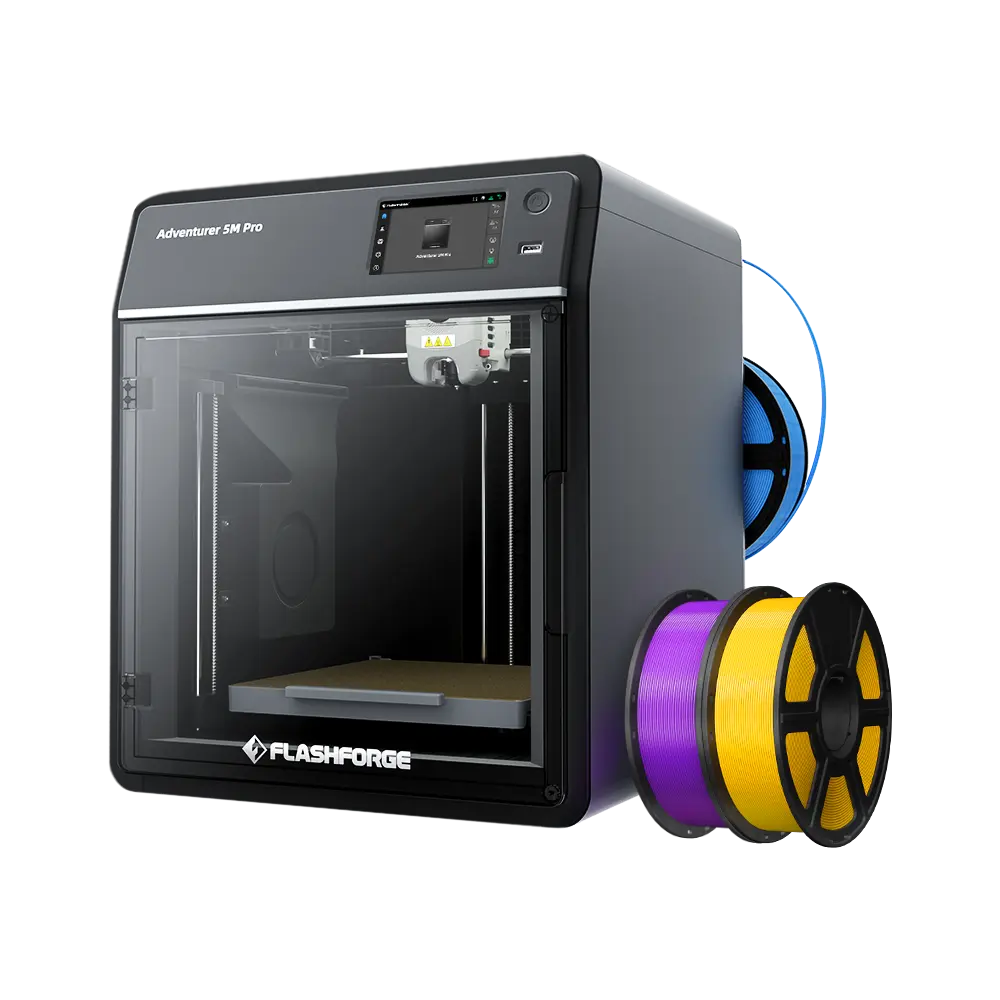

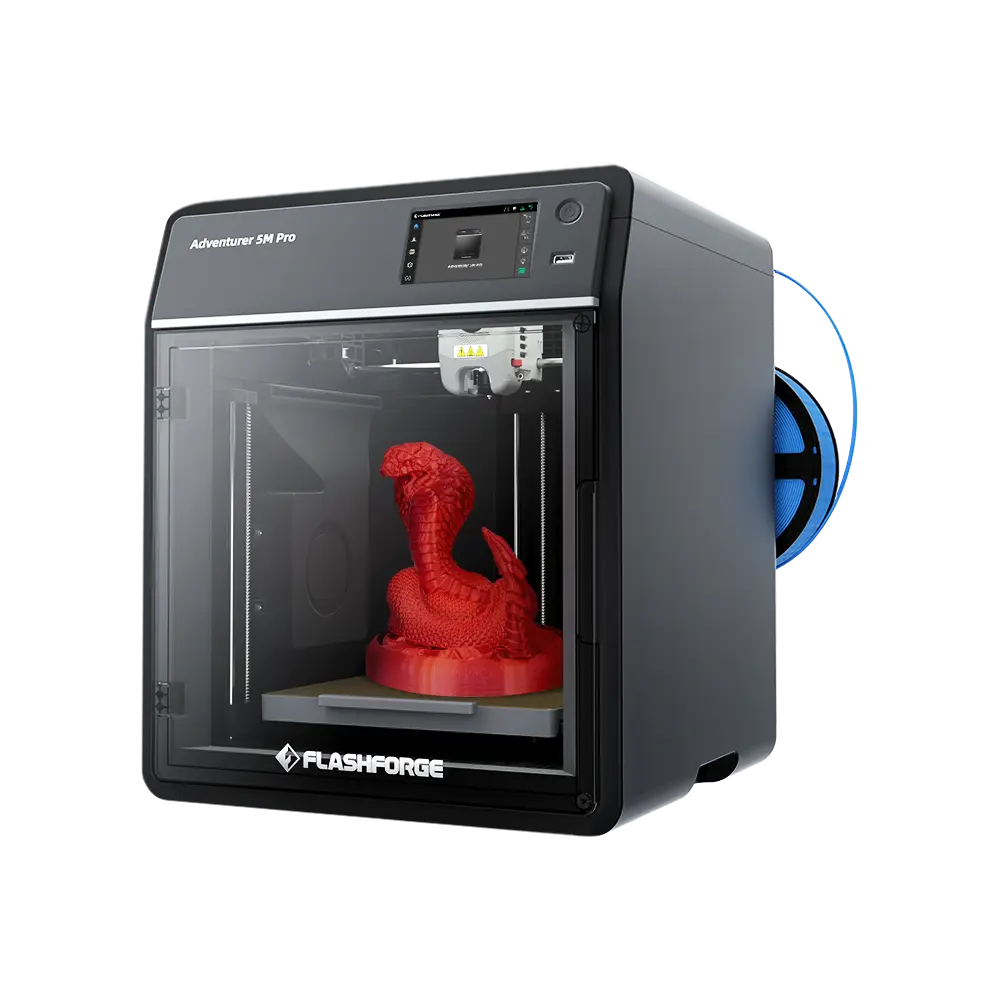

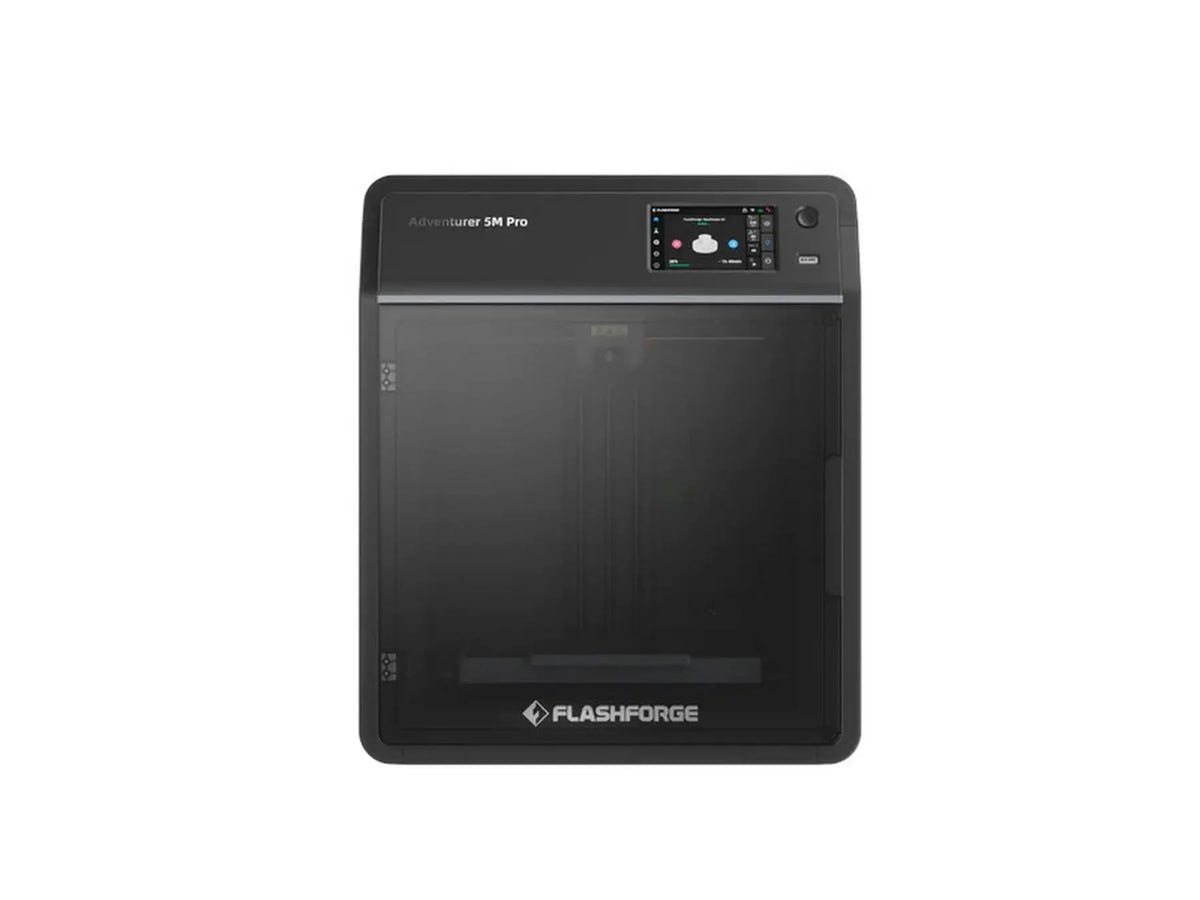

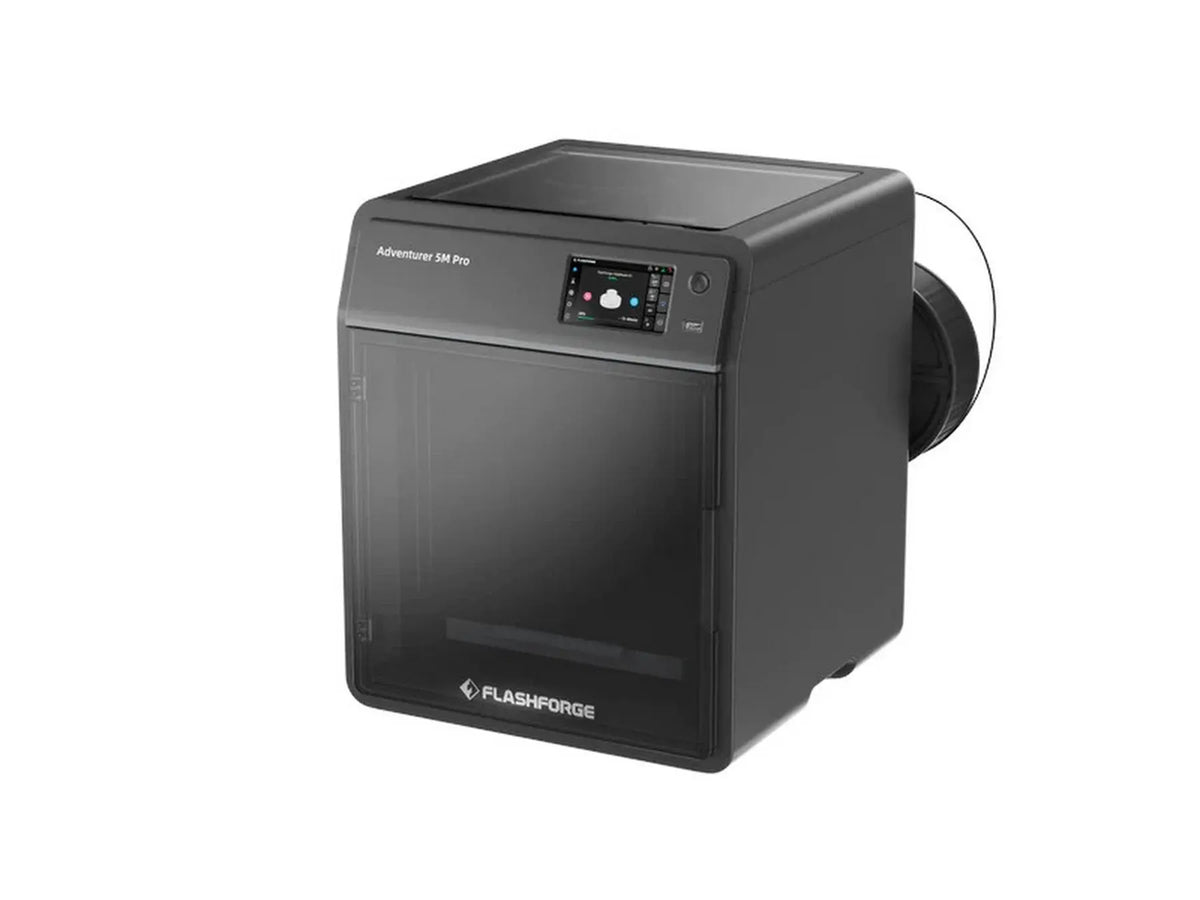

The FlashForge Adventurer 5M Pro is designed for users seeking high-speed, precise, and quiet 3D printing. Featuring a CoreXY mechanism, this printer integrates FlashForge’s advanced technology with efficient print speeds and consistent accuracy. Its automated bed leveling, quiet operation (approx. 50 dB), and quick-release nozzle make it a versatile choice for both professionals and hobbyists.
Key Features
- Fast & Efficient Printing – Capable of print speeds up to 300 mm/s and travel speeds up to 600 mm/s, with an acceleration of 20,000 mm/s².
- Automated Bed Leveling – One-click bed leveling ensures a consistent first layer with minimal manual adjustments.

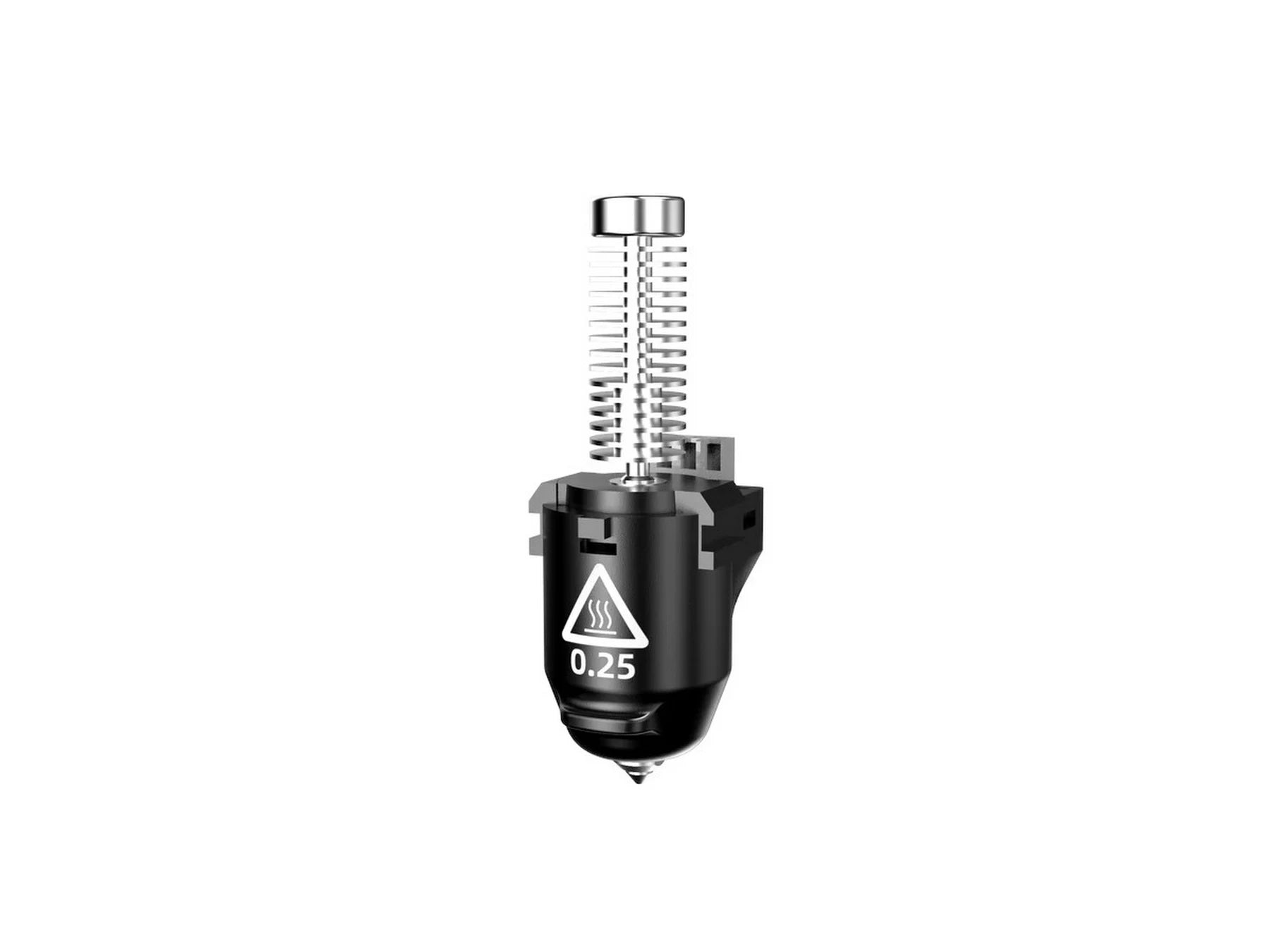

- Quick-Release Nozzle – Simplifies maintenance and allows users to swap nozzles for different materials and print resolutions.
- Low-Noise Operation – Designed to operate at approximately 50 dB, making it suitable for classrooms, offices, and home workspaces.
- Multi-Material Compatibility – Supports a variety of filaments, including PLA, PETG, TPU, ABS, ASA, and fiber-reinforced materials (with compatible nozzles).
- Air Filtration System – Equipped with a HEPA H13 filter and activated carbon, helping to reduce particulates and VOC emissions.
- Remote Monitoring – Integrated camera support allows real-time print observation.
Specifications
Printing
- Extruder Type: Single
- Print Technology: FFF (Fused Filament Fabrication)
- Build Volume: 220 × 220 × 220 mm (8.7 × 8.7 × 8.7 in)
- Print Accuracy: ±0.2 mm
-
Positioning Precision:
- X/Y-Axis: 0.025 mm
- Z-Axis: 0.0025 mm
- Nozzle Diameter: 0.4 mm (Standard); Optional: 0.22 mm, 0.6 mm, 0.8 mm
- Layer Thickness: 0.1–0.4 mm
- Print Speed: Up to 300 mm/s (speed varies based on material and settings)
- Travel Speed: Up to 600 mm/s
- Acceleration: 20,000 mm/s²
- Maximum Extruder Temperature: 265°C (509°F)
- Heated Build Plate: Supports up to 110°C (230°F)
-
Filament Compatibility:
- 0.4 mm Nozzle: PLA, PETG, TPU
- 0.6/0.8 mm Nozzles: ABS, ASA, PLA-CF, PETG-CF
Mechanical & Dimensions

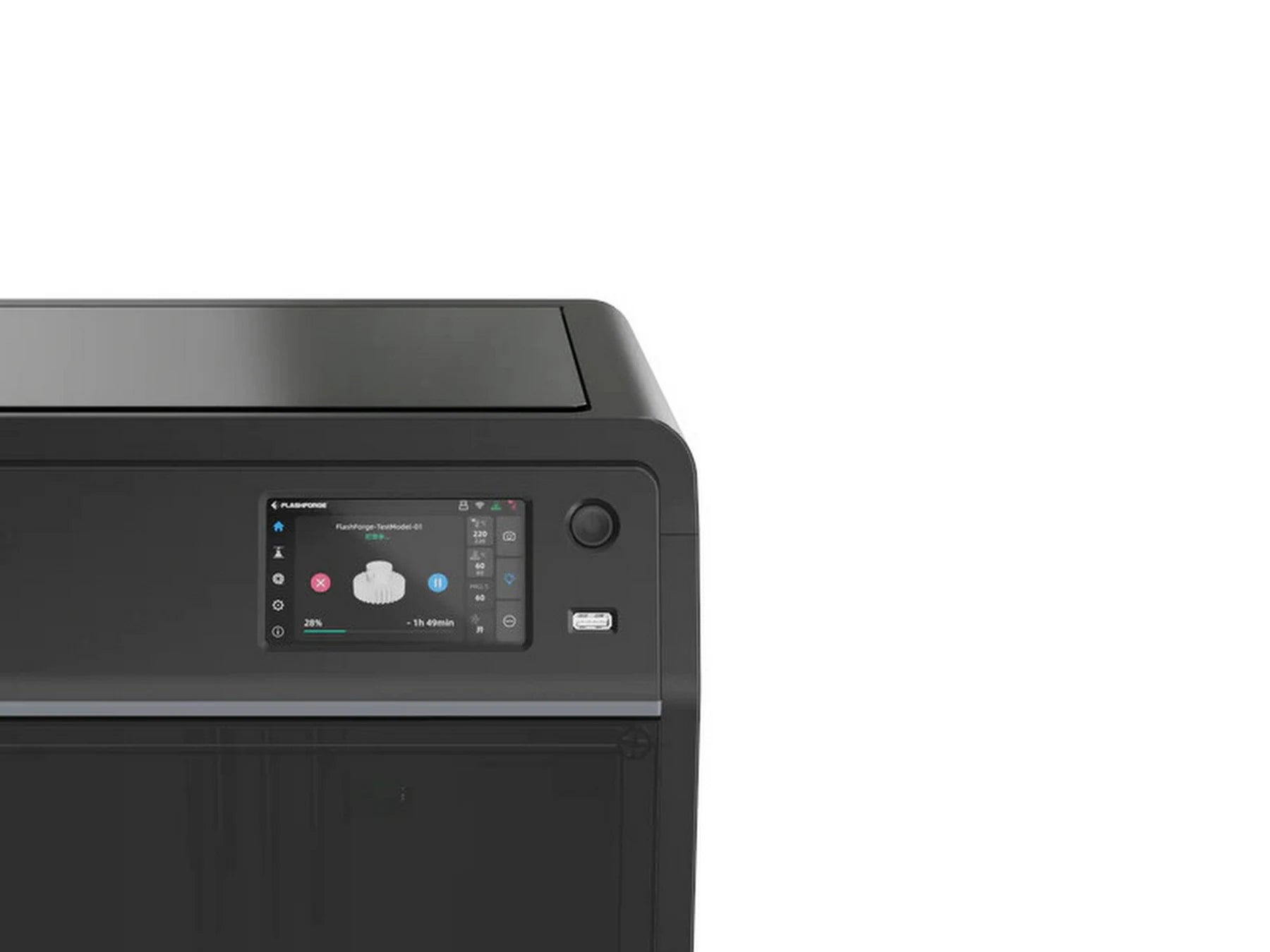

- Display: 4.3-inch Touch LCD Screen
- Build Surface: Durable PEI build plate for enhanced adhesion
- Printer Dimensions: 380 × 400 × 453 mm (15 × 15.7 × 17.8 in)
- Package Dimensions: 460 × 480 × 530 mm (18 × 19 × 21 in)
- Net Weight: 44.3 lbs (20.1 kg)
- Gross Weight: 58.4 lbs (26.5 kg)
Electrical & Connectivity
- Power Supply: AC 100–240V / DC 24V, 13.3A, 320W
- Connectivity Options: USB stick, Wi-Fi, Ethernet, Cloud Printing
Software Compatibility
- Slicing Software: Compatible with FlashPrint, Polar Cloud, Cura
- File Input Formats: 3MF, STL, OBJ, FPP, BMP, PNG, JPEG
- File Output Formats: GX, G-code
- Operating Systems: Windows 7/8/10/11, Ubuntu 20.04+ (Linux), macOS 10.9 or later
What's in the Box
- 1 × Adventurer 5M Pro 3D Printer
- 250g PLA Filament
- Power Cord
- Quick Start Guide
- 0.6 mm Nozzle Kit
- Screwdriver
- Hex Wrench Set
- Lubricant (Grease)
- USB Drive
- Leveling Tool
- Filament Holder
- Pliers
- Adhesive (Glue)
