BOFA AD 1000 iQ is a high-performance laser fume extraction system designed for heavy-duty laser marking, coding, and engraving applications. With its large filter capacity and high airflow and pressure rates, this system ensures efficient removal of particulates and gaseous organic compounds, making it ideal for demanding industrial environments.
Key Features:
-
iQ Operating System – Provides real-time monitoring, remote diagnostics via USB, and intelligent control for enhanced efficiency.
-
High Airflow & Pressure Rates – Designed for high-volume fume extraction, ensuring optimal performance in industrial settings.
-
DeepPleat DUO Pre-Filter – Patented high-capacity filter maximizes efficiency and extends filter life.
-
Reverse Flow Air Filter Technology – Improves filtration performance while minimizing filter clogging.
-
Automatic Flow Control System – Maintains consistent extraction rates, optimizing energy consumption.
-
Independent Filter Condition Monitoring – Real-time display and warnings help users track filter health and prevent downtime.
-
Advanced Filtration – Combined HEPA and activated carbon filter (ACF Technology) captures 99.997% of particulates at 0.3 microns and removes VOCs and gases.
-
Low Noise Levels – Operates at less than 63dBA, making it suitable for quieter workspaces.
-

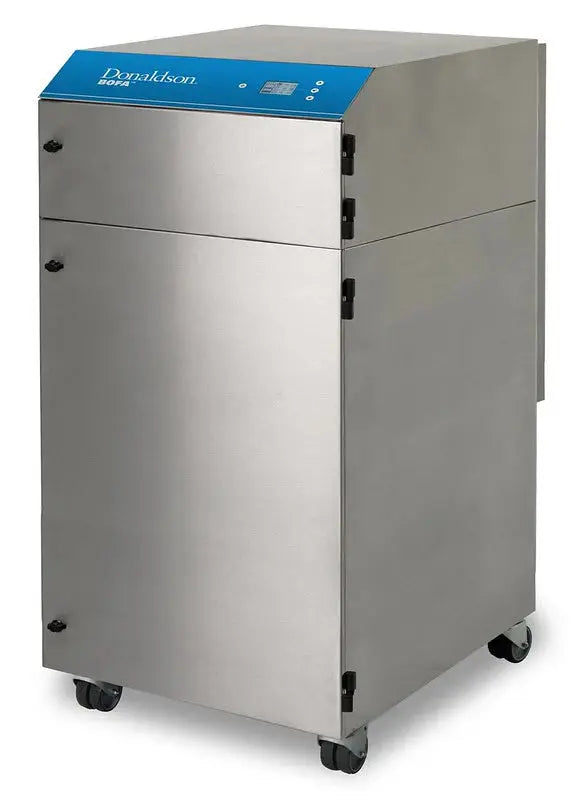

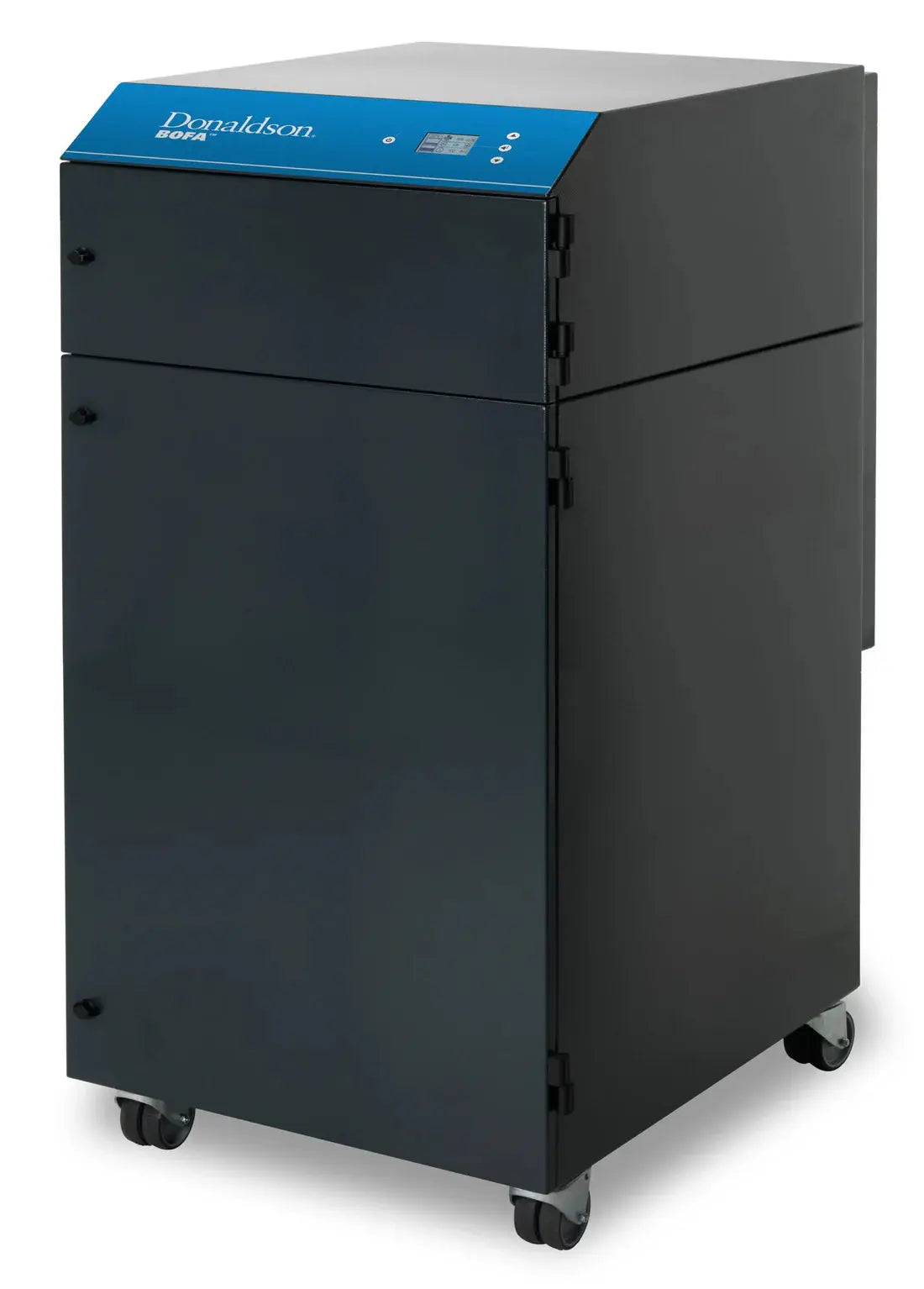

Durable Construction – Made of brushed stainless steel or powder-coated mild steel for long-lasting durability.
-
Compact & Mobile – Dimensions: 1205 x 615 x 790mm (47.44 x 24.21 x 31.10 inches)
Weight: 140kg (309 lbs)
Equipped with castors for easy mobility.
Technical Specifications:
-
Voltage Options:
-
230V 1ph 50/60Hz – Full load current: 12.8A / 2.2kW
-
115V 60/50Hz – Full load current: 19.5A / 2.2kW
-
Certifications: CE, cUL, UL Approved
-
Noise Level: <63dBA (at typical operating speed)

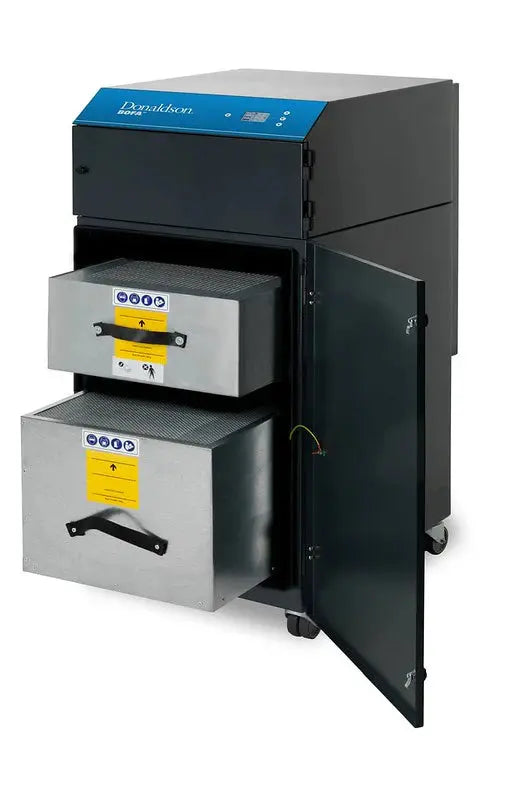

Replacement Filters:
-
Pre-Filter: 1UA1030222
-
Combined Filter: 1UA1030297
Specifications:
- Dimensions: 47.44 x 24.21 x 31.10 inches
- Unrestricted airflow: 515cfm (+/- 10%)
- Airflow range: 176-430 cfm
- Maximum pressure: 100mBar (+/- 3%)
- Electrical requirements: 115V, 50/60Hz, 19.5 amps
- Noise level: < 85dBA
- Weight: 324lbs (+/- 5%)
- Finish: Powder-coated mild steel, RAL7016
- Approvals: UKCA, CE, UL
