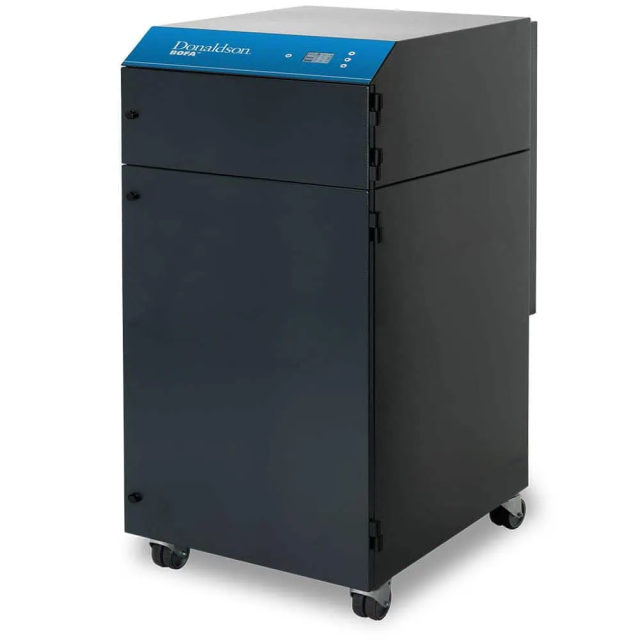

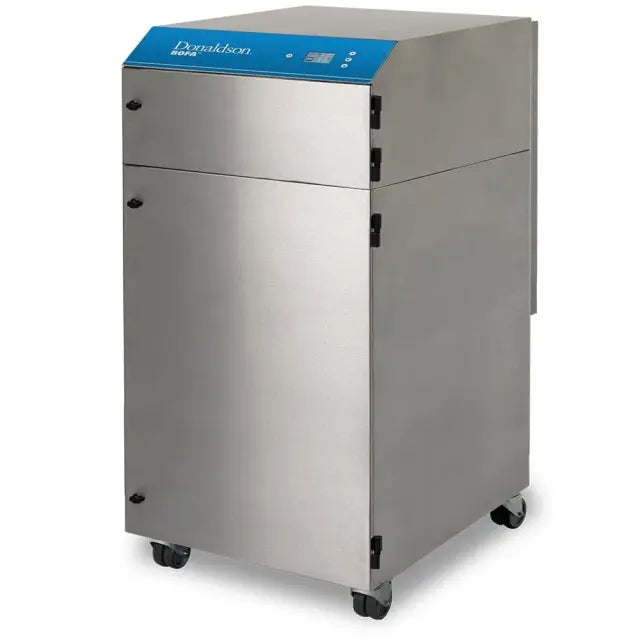

BOFA AD 1500 iQ is a high-end laser fume extraction system designed for heavy-duty applications. Available in Powder-Coated Black or Stainless Steel, this advanced system is engineered to handle large volumes of particulates and gaseous organic compounds, making it ideal for industrial laser processing environments.
Key Features:
-
iQ Operating System – Advanced user-friendly interface with real-time monitoring and diagnostics.
-
High Airflow & Pressure – Ensures effective extraction for heavy-duty laser applications.
-

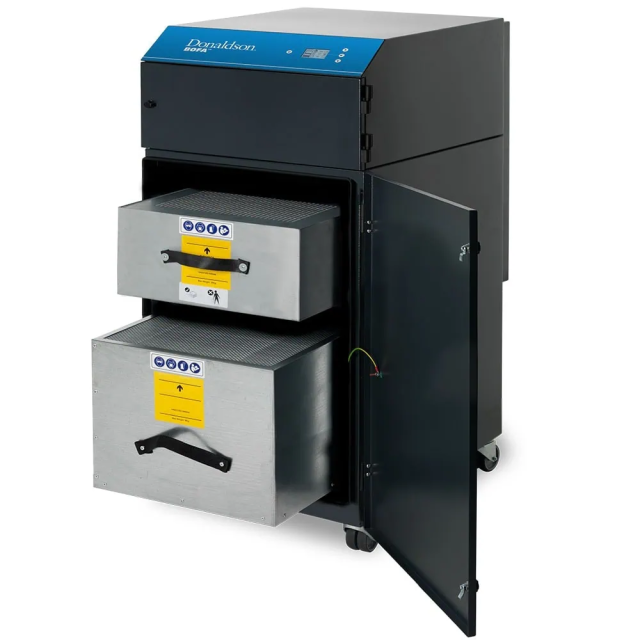

Reverse Flow Air Filter Technology – Extends filter lifespan and improves efficiency.
-
DeepPleat DUO Pre-Filter – Patented design for superior particle capture.
-
Combined HEPA/Gas Filter – Features Advanced Carbon Filter (ACF) Technology to remove 99.997% of particulates at 0.3 microns and reduce VOC emissions.
-
Automatic Flow Control System – Maintains optimal performance with energy efficiency.
-
Real-Time Airflow Monitoring – Provides instant feedback on extraction performance.
-
Independent Filter Condition Monitoring – Alerts users when filters need replacement, reducing downtime.
-
‘Run Safe’ Operation – Ensures filters are installed correctly before the unit starts.
-
Remote Diagnostics via USB – Enables easy troubleshooting and system analysis.
-
Long-Life Filters – Designed for low maintenance and cost efficiency.

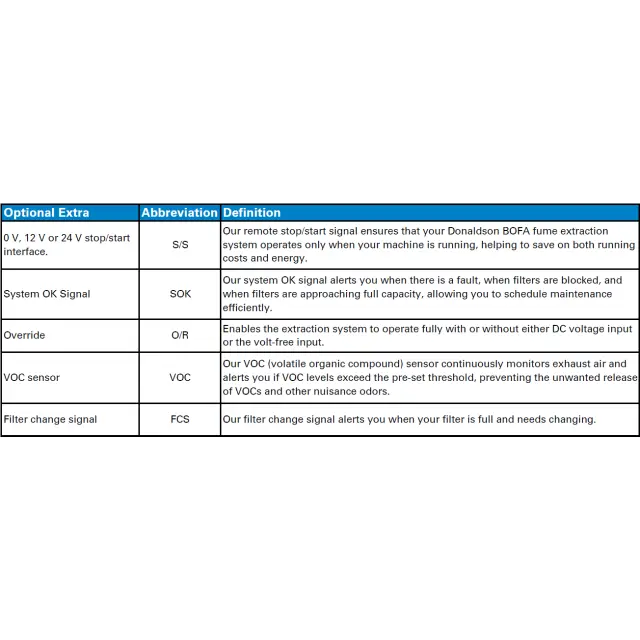

Factory Fit Options:
-
24V S/S (Remote Stop/Start Signal) – Automatically turns the fume extractor on/off with machine operation, reducing running costs.
-
SOK Signal – Notifies users of faults, blocked filters, and filter capacity levels, allowing for timely maintenance.
-
O/R (Override Mode) – Enables the system to operate with or without DC voltage input or volt-free input.
The BOFA AD 1500 iQ is one of the most advanced fume extraction systems available, offering top-tier performance, safety, and efficiency for high-demand laser engraving, cutting, and marking applications.
Specifications:
Bofa AD 1500 iQ Laser Fume Extractor
| Dimensions (L x D x H) |
600 x 790 x 1197 mm |
| Cabinet Construction |
Brushed Stainless Steel / Powder Coated Mild Steel |
| Airflow / Pressure |
1350 m³/h |
| Electrcial Data |
230v 1ph 50/60 Hz
3ph 7 amps per phase / 12 amps neutral
|
| Full Load Current |
12.8 amps / 7 amps per phase 12 amps n |
| Noise Level |
< 63 dBA* |
| Weight |
145 kg |
| Approvals |
CE |
DeepPleat DUO Pre Filter Specifications
| Surface Media Area |
30m² approx |
| Filter Media |
Glass Fibre |
| Filter Media Construction |
Maxi Pleat Construction with Webbing Spacers |
| Filter Housing |
Zintec Mild Steel |
| Filter Efficiency |
F8 (95% @ 0.9 microns) |
Combined Filter Specifications
| Surface Media Area |
7.5 m² |
| HEPA Filter Media |
Glass Fibre |
| HEPA Media Construction |
Maxi Pleat Construction with Webbing Spacers |
| Filter Housing |
Zintec Mild Steel |
| Treated Activated Carbon |
34kgs |
| Filter Efficiency |
99.997 % @ 0.3 microns |
