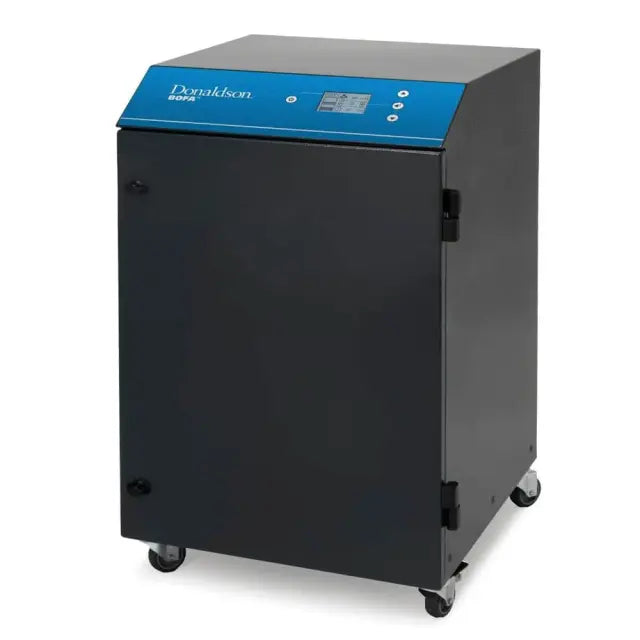

BOFA AD Oracle SA iQ Laser Fume Extractor is BOFA’s most technically advanced compact fume extraction system, designed for precision laser applications. Equipped with the iQ Operating System, Reverse Flow Air (RFA) technology, and Advanced Carbon Filtration (ACF), this unit ensures enhanced performance, efficiency, and safety while minimizing maintenance downtime and ownership costs.
Key Features:
-
iQ Operating System – Provides real-time data monitoring and performance analytics for optimal operation.
-
Automatic Flow Control – Maintains consistent airflow for efficient fume extraction.
-
Reverse Flow Air (RFA) Technology – Enhances filtration efficiency and filter lifespan.
-
Advanced Carbon Filtration (ACF) – Effectively removes harmful gases and odors.
-
Auto-Sensing Voltage (90-257V) – Supports global compatibility.
-
High-Contrast Display – Ensures clear visibility of system status.
-
Real-Time Airflow Reading – Monitors airflow for optimal efficiency.
-
Filter Status Warnings – Alerts users when filter replacement is needed.
-
Independent Filter Condition Monitoring – Ensures maximum filtration efficiency.
-
‘Run Safe’ Operation – Prevents operation unless filters are properly installed.
-
Remote Data Diagnostics via USB – Allows for quick troubleshooting and performance tracking.
-
Low-Cost Replacement Filters – Reduces ongoing maintenance expenses.
-
Low Noise Levels – Ensures quiet operation.
-
Lockable Castors – Provides easy mobility and stability.
-
Compact Design – Small footprint for space-saving installation.

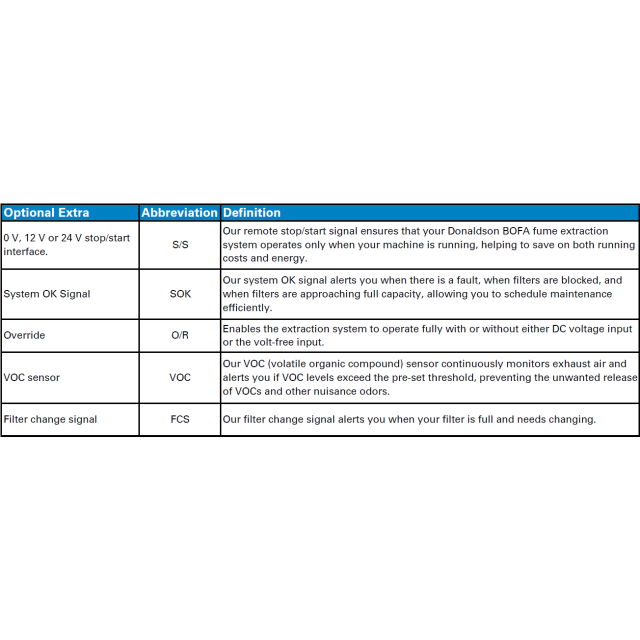

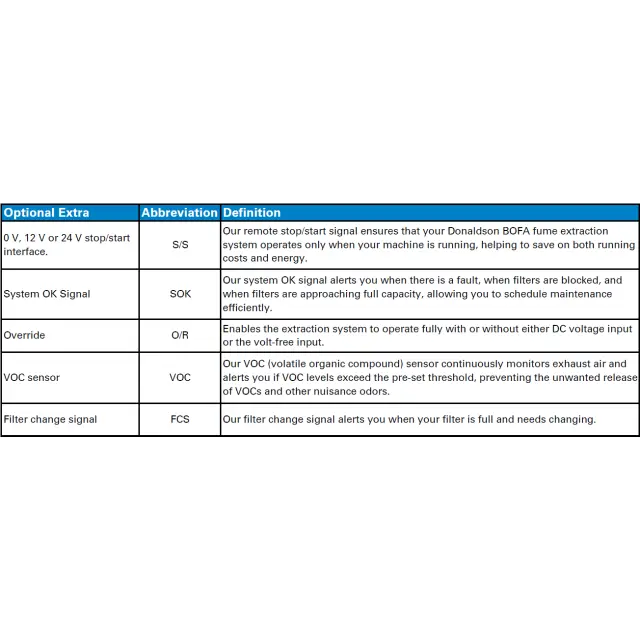

Factory Fit Options:
-
24V S/S Remote Stop/Start – Operates only when the machine is running, reducing energy consumption.
-
SOK Signal – Alerts for faults, blocked filters, or full filter capacity, enabling proactive maintenance.
-
O/R Mode – Allows operation with or without DC voltage input or volt-free input.
The BOFA AD Oracle SA iQ is the ideal choice for high-performance laser fume extraction, combining cutting-edge technology, intelligent monitoring, and cost-efficient operation in a compact, user-friendly system.
Specifications:
Bofa AD Oracle SA iQ Laser Fume Extractor
| Dimensions (L x D x H) |
430 x 515 x 730 mm |
| Cabinet Construction |
Brushed Stainless Steel / Powder Coated Mild Steel |
| Airflow / Pressure |
380 m³/h |
| Electrcial Data |
90 - 257v 1ph 50/60 Hz |
| Full Load Current |
12.5 amps |
| Noise Level |
< 60 dBA* |
| Weight |
55 kg |
| Approvals |
CE |

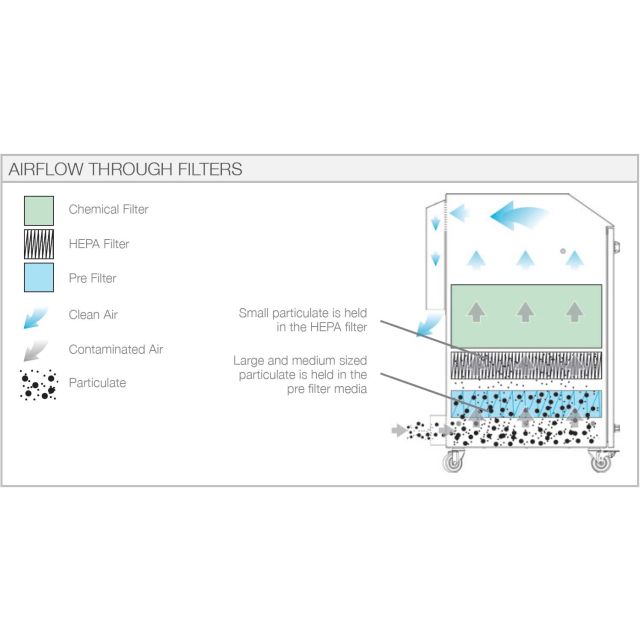

Pre Filter Specifications
| Surface Media Area |
2.97m² approx |
| Filter Media |
Glass Fibre |
| Filter Media Construction |
Folded Pleat |
| Filter Housing |
Cardboard |
| Filter Efficiency |
F8 (92% @ 0.8 microns) |
Combined Filter Specifications
| HEPA Filter Media |
Glass Fibre |
| HEPA Media Construction |
Maxi Pleat Construction with Webbing Spacers |
| Filter Housing |
Zintec Mild Steel |
| Treated Activated Carbon |
15kgs |
| Filter Efficiency |
99.997 % @ 0.3 microns |
