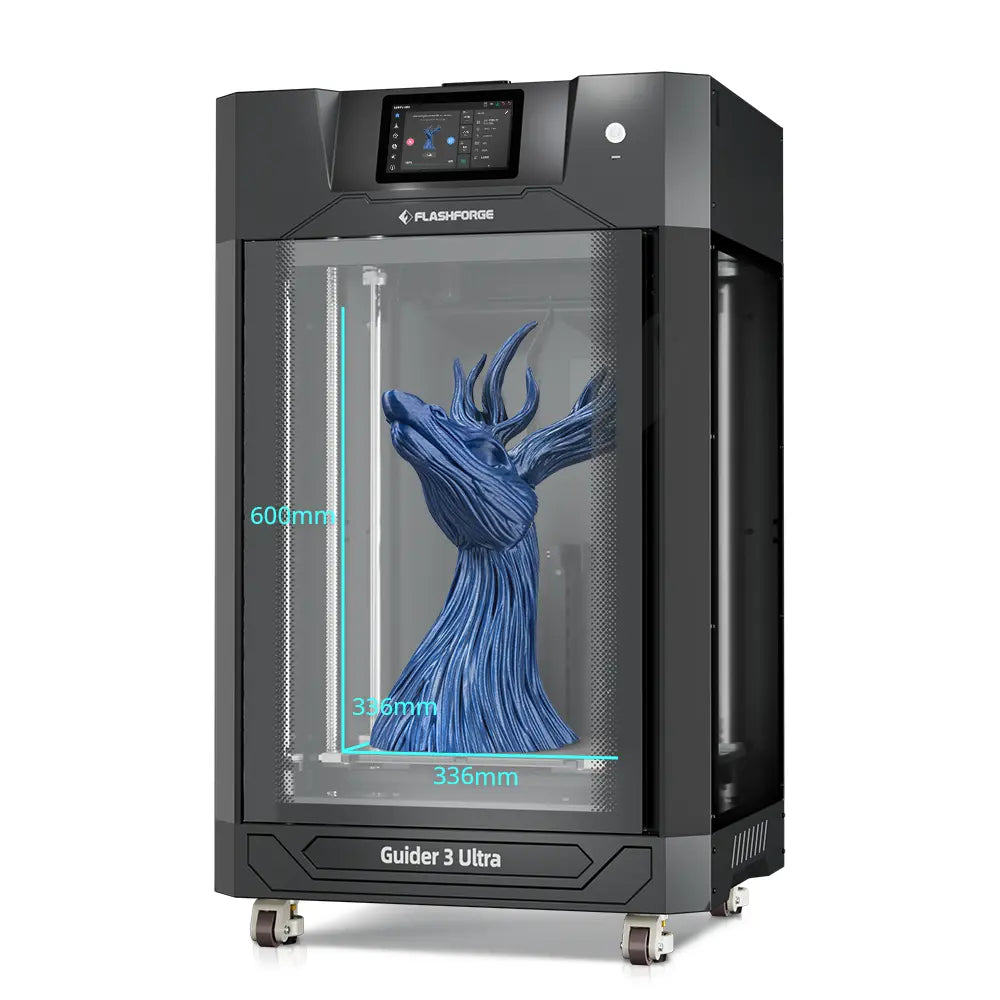

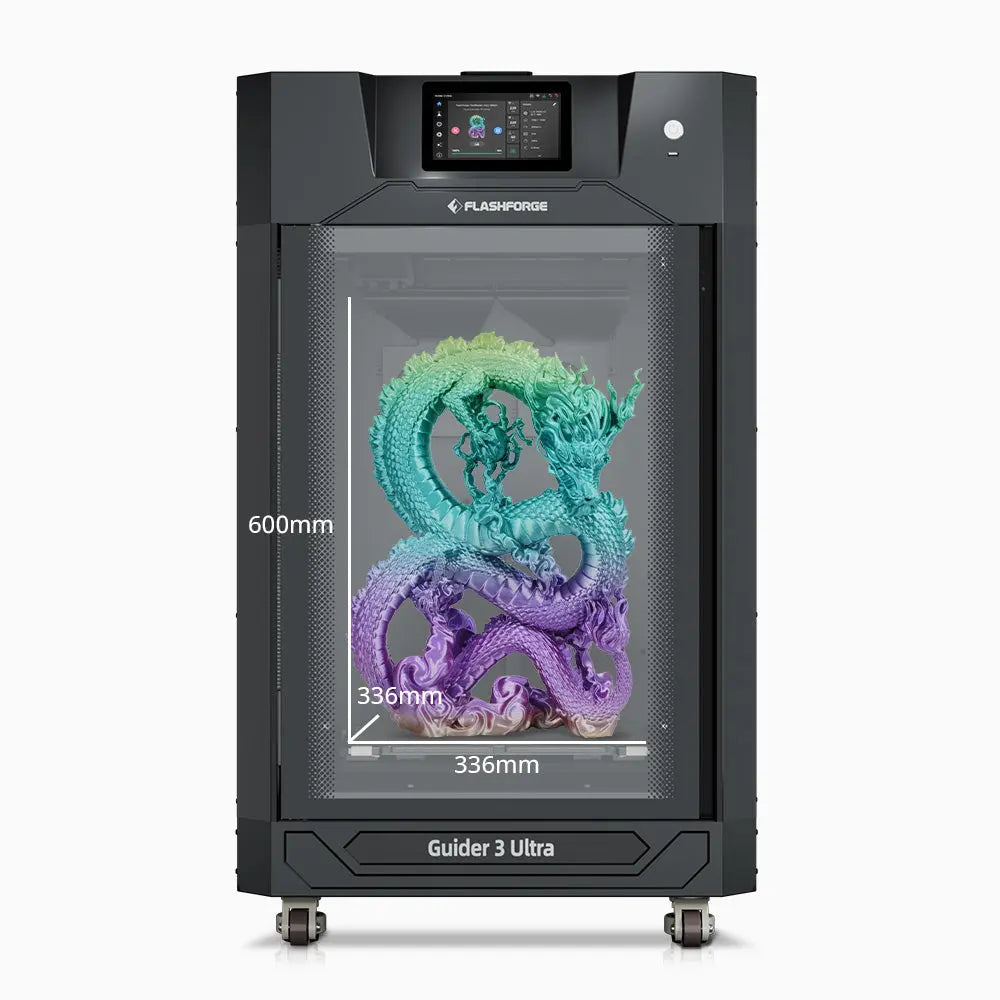

Flashforge - Guider 3 Ultra 3D Printer

Overview

Step confidently into the future of 3D printing with the FlashForge Guider 3 Ultra. This advanced printer features a robust CoreXY metal frame, print speeds up to 500 mm/s, automatic bed leveling, and a dual extruder setup—making it suitable for complex model creation and high-efficiency printing.

Precision Printing with CoreXY Structure

The metal CoreXY structure is designed to minimize errors from vibrations or mechanical shifts. Unlike conventional belt-driven systems, the independent control of the X and Y axes improves print accuracy, especially for detailed designs.

Large Build Volume for Expansive Projects

The Guider 3 Ultra provides a build height of 600 mm, allowing users to create larger models in a single print session, reducing the need for assembly of multiple parts.

Optimized Surface Quality

Using an extruder pressure compensation algorithm, the printer adjusts filament flow to improve first-layer adhesion. The vibration suppression algorithm helps to reduce print artifacts, such as ringing, even at higher speeds.

Dual Extruder for Multi-Material Printing

The dual extruder system allows for multi-material printing and is suitable for designs requiring support structures, hollow sections, or overhangs.

Intelligent Filament Transition

An automated filament sensor detects when a spool is empty and facilitates a smooth switch between extruders, minimizing print interruptions.

Efficient Maintenance & User-Friendly Design

Designed for convenience, the quick-release nozzle simplifies maintenance, reducing downtime between prints.

Key Features

• Stable High-Speed Printing – Print speeds of up to 500 mm/s, with a build volume of 330 × 330 × 600 mm.
• Precision Manufacturing – Achieves a tolerance of ±0.15 mm, suitable for detailed components.
• Specialized Material Compatibility – Supports curved surface printing and various industrial filaments.
• Automated Bed Leveling – One-click, fully automated leveling ensures consistent first-layer adhesion.
• Time Optimization – The dual extruder system can reduce print time when used efficiently.
• Power Management Features – Includes automatic shutdown and print recovery after power loss.
• Filament Run-Out Alerts – Integrated detection system to notify users when filament is low.
• Remote Monitoring & Control – Manage prints remotely via a dedicated app.
• Versatile Applications – Suitable for prototyping, manufacturing, medical models, architectural designs, and functional parts.

Specifications

• Extruder Count: Dual
• Printing Accuracy: ±0.15 mm or ±0.002 mm/mm (whichever is greater)
• Positional Precision: X/Y-axis: 0.011 mm; Z-axis: 0.0025 mm
• Layer Resolution: 0.05–0.4 mm
• Build Volume:
  • Single Extruder: 330 × 330 × 600 mm
  • Dual Extruder: 300 × 330 × 600 mm
• Nozzle Options: Standard 0.4 mm; optional 0.6 mm or 0.8 mm
• Print Speed: 10–500 mm/s (dependent on material and settings)
• Maximum Acceleration: 20,000 mm/s²
• Travel Speed: Up to 500 mm/s
• Maximum Extruder Temperature: 350°C
• Compatible Filaments: PLA, ABS, HIPS, ASA, PETG, CoPA, PLA-CF, PETG-CF, PAHT-CF, PAHT-GF, PET-CF, PET-GF, PA12-CF, PA-CF, PA-GF, NexPA-CF25
• Power Supply: AC100–240V, 50/60Hz, up to 850W
• Dimensions: 635 × 550 × 1070 mm (excluding filament box extension)
• Weight: 70 kg
• Slicing Software: Orca-Flashforge, FlashPrint 5
• File Formats:
  • Input: 3MF, STL, OBJ, FPP, BMP, PNG, JPG, JPEG
  • Output: GX, G-code
• Connectivity: USB, Ethernet, Wi-Fi
• Certifications: CE, FCC, RoHS
• Operating Temperature: 15–30°C
• Supported OS: Windows 7/8/10/11; macOS 10.9 or later
• Compatible Slicer: OrcaSlicer
• Heated Bed: Supports up to 120°C
• Enclosed Design: Yes
• Assisted Leveling: Fully automatic one-click leveling
• Filament Run-Out Alert: Yes
• Interchangeable Print Bed: Yes
• Power Outage Resume: Yes
• Touchscreen: 7-inch LCD
• Remote Monitoring: Yes, with time-lapse video support
• Air Filtration: Included
• Magnetic Print Bed: Flexible steel plate
• Noise Level: Designed for quiet operation
• Automatic Shutdown: Yes
• Warranty: 1 Year

Included in the Package

• 1 × Guider 3 Ultra Printer
• 1 × Flat-head Screwdriver
• 1 × Nozzle Unclogging Tool
• 1 × Scraper
• 1 × Allen Wrench Set
• 1 × Pair of Tweezers
• 2 × Lubricant Grease Tubes
• 1 × Cleaning Brush
• 1 × Adhesive
• 2 × Fuses
• 1 × Needle-Nose Pliers
• 1 × Diagonal Cutting Pliers
• 1 × Heat-Resistant Gloves
• 1 × Flexible Heat Insulation Sheet
• 12 × Desiccant Packets
• 2 × 3D Printing Filament Spools
• 2 × Nozzle Kits
• 1 × User Manual

Model Comparison
