Revopoint MIRACO PLUS – The Ultimate All-in-One 3D Scanner with Photogrammetric Metrology

The Revopoint MIRACO PLUS is the world’s first affordable all-in-one 3D scanning and photogrammetric metrology solution. Designed for high-precision scanning of both small and large objects, MIRACO PLUS offers unmatched accuracy, high-speed scanning, and an advanced photogrammetry system for metrology-grade measurements. Whether you're in engineering, reverse engineering, industrial design, or heritage preservation, this cutting-edge scanner delivers the accuracy and efficiency you need.

Key Features:

✔ All-in-One Scanning Solution – Scan everything from small intricate models to large industrial objects in a single workflow.
✔ Ultra-Precise Measurements – Achieve 0.04 mm single-frame accuracy and photogrammetric length accuracy of 0.02 mm + 0.05 mm x L (m) for metrology-grade precision.
✔ High-Speed Performance – Up to 20 FPS scanning speed ensures fast and efficient data capture.
✔ 2x Infrared Optical Zoom – Improves depth accuracy and allows detailed scanning across various object sizes.
✔ Single-Shot & Continuous Modes – Select the best scanning mode for either static objects or dynamic environments.
✔ Full Integration with Photogrammetric Metrology Kit (PMK) – Enhance precision when capturing large-scale objects like automotive parts, aircraft components, and industrial machinery.
✔ Standalone Scanning – No PC or cables required! Process scans directly on the device and transfer via Wi-Fi or USB-C.
✔ Large Object Scanning Workflow – Optimized for capturing vehicles, furniture, industrial equipment, and more.
✔ Advanced Hardware – Equipped with a 48MP RGB camera, 9-axis IMU, and AMOLED touchscreen display for smooth scanning.

Specifications:

Efficient Workflow for Large Object Scanning

🚀 Step 1 – Prepare
Place the scale bars, coded targets, and markers around the object.

📸 Step 2 – Capture
Take photogrammetric images from multiple angles to ensure full object coverage.

💾 Step 3 – Compute & Capture Point Clouds
Calculate marker positions and generate precise point clouds on the MIRACO PLUS.

🖥 Step 4 – Process & Export
Refine and export your scan via Wi-Fi or USB-C for seamless integration with CAD and design software.

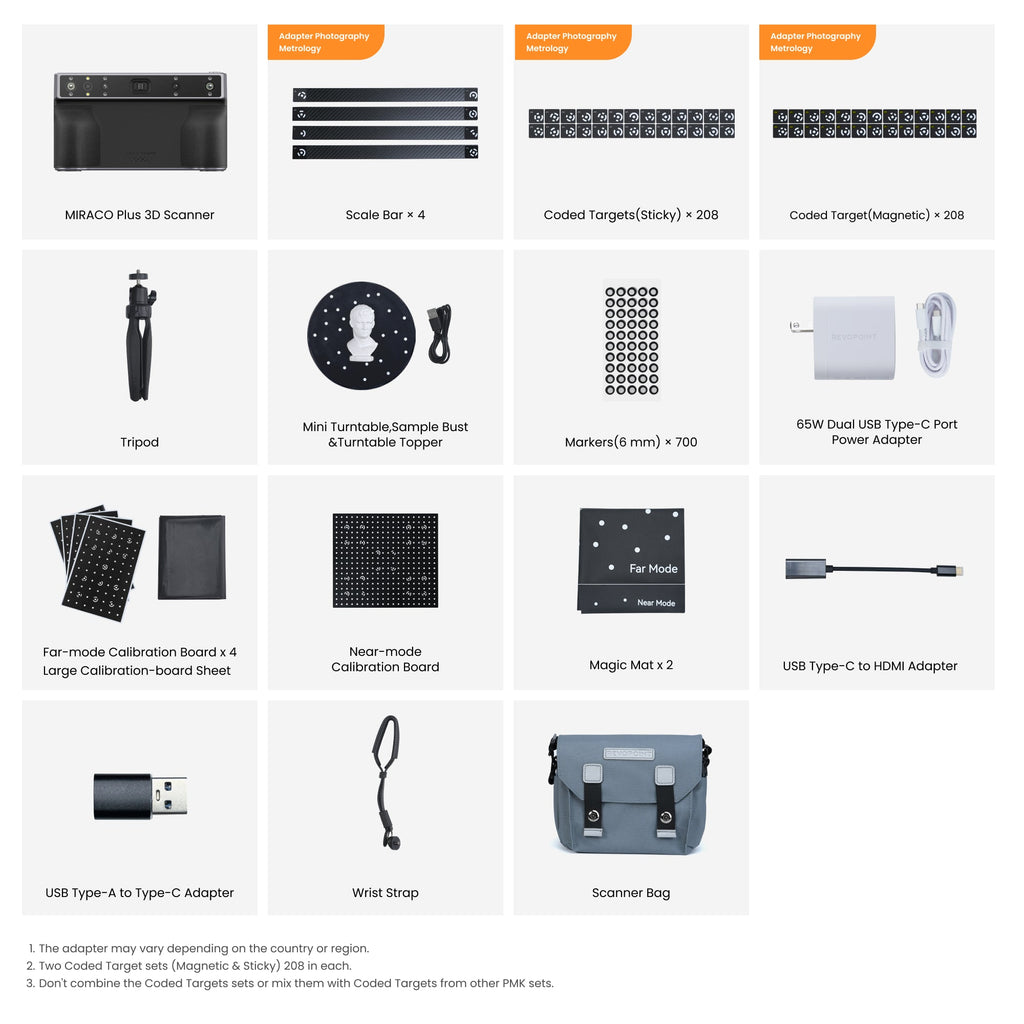

What’s in the Box?

✔ MIRACO PLUS 3D Scanner
✔ Scale Bars (x4) for Photogrammetry
✔ Coded Targets (Magnetic) – 208 Pieces
✔ Coded Targets (Sticky) – 208 Pieces
✔ Tripod
✔ Mini Turntable & Sample Bust
✔ Markers (6 mm) – 700 Pieces
✔ USB Type-C to HDMI Adapter
✔ Far-mode Calibration Board (x4)
✔ Large Calibration-board Sheet
✔ Near-mode Calibration Board
✔ Magic Mat (x2)
✔ 65W Dual USB Type-C Port Power Adapter
✔ USB Type-C to C Cable (1.8 m)
✔ USB Type-A to Type-C Adapter
✔ Wrist Strap
✔ Protective Scanner Bag

📌 Note:
1️⃣ Power adapter may vary by country.
2️⃣ Two sets of Coded Targets (Magnetic & Sticky) – 208 each.
3️⃣ Do not mix coded targets from different PMK sets.

Applications:

✅ Reverse Engineering – Create CAD-ready 3D models with metrology-grade accuracy.
✅ Industrial Design & Prototyping – Scan and refine prototypes for faster production cycles.
✅ Vehicle Modification – Scan entire cars, motorcycles, and parts for modifications or quality control.
✅ Heritage Preservation – Digitally preserve artifacts and historical objects in high resolution.
✅ Medical & Orthopedics – Generate high-accuracy 3D models for prosthetics, orthotics, and surgical planning.

Upgrade to a New Standard in 3D Scanning!

The Revopoint MIRACO PLUS is the ultimate all-in-one 3D scanning solution, offering photogrammetry, metrology-grade accuracy, and powerful standalone performance. Whether you need reverse engineering, quality inspection, or industrial 3D modeling, MIRACO PLUS is the future of precision scanning.
