Package Includes:
- X-S21-WS, DMI-C, DMI-K
- D-Rack x1 (part# X-D-RACK-2) 32/8 I/O (expandable to 32/16)
- CAT5e 75M (246 ft.) Cable x1
- Dust Cover
Connections:
- 24 Mic/Line Inputs
- 12 Line Outputs
- 2 Ch AES In/Out
- DMI Slot x2
- USB-B 48 Track Recording Interface
Connectors:
- Dependent on cards loaded in DMI Slots
- USB-Type B
Since its founding in 2002, DiGiCo has been a pioneer in the pro audio industry, continually setting new standards for flexibility and sound quality. Two key milestones in their journey include DiGiCo’s introduction of TFT touch screen technology and the use of Stealth Digital Processing (FPGA) to replace DSP for audio processing. This groundbreaking technology has played a vital role in the SD Series, and DiGiCo continues to be a leader in high-profile international tours, including eight of the top ten highest-grossing tours of 2014.
DiGiCo’s adoption of FPGA and Stealth Digital Processing demonstrates their leadership in the industry. The ability to reprogram devices from power-up and use new compiling tools has made the SD series more versatile than ever. For instance, users of the SD9 have seen substantial upgrades since its initial release—40 Flexi Channels have grown to 48, Flexi Busses have expanded from 16 to 24, and the Output Matrix now includes 12 In/Out. Furthermore, onboard FX have doubled from 4 to 8, and Dynamic EQ has expanded from 4 to 8, all while maintaining the 96kHz sampling rate with zero loss in audio processing.
These major improvements have been provided to current owners at no extra cost, delivering exceptional value. While DiGiCo's focus on top-tier audio quality and durability has made entry-level products difficult to produce, the S21 breaks that trend by using cost-effective FPGA components without sacrificing the signature audio quality. Its inclusion of an ARM QuadCore RISC processor enables faster, more efficient processing with lower power consumption.
Technological Breakthroughs:
The S21 features a high-power QuadCore SoC with high-bandwidth memory, connected to a low-power 484-ball FPGA array and a fourth-generation SHARC DSP. This technology integration ensures powerful processing potential in a compact form factor.

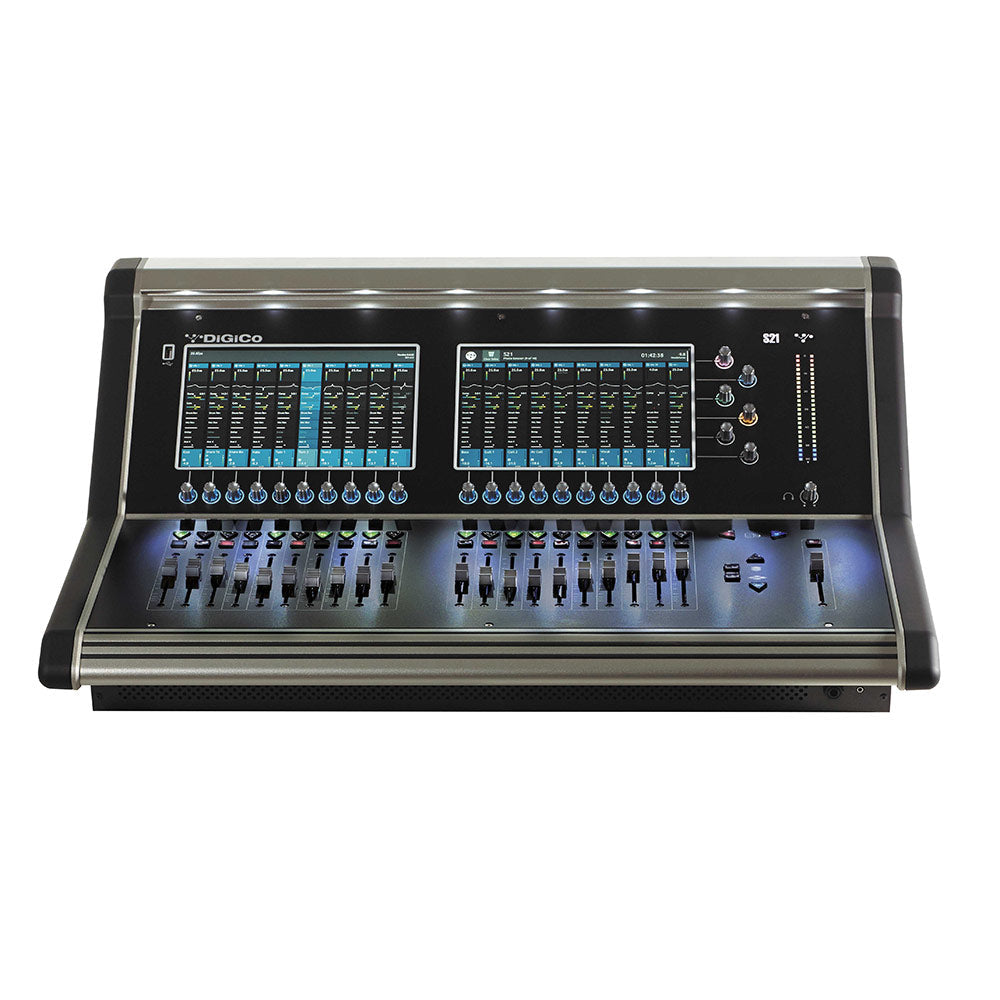

Dual Touch Screens:
DiGiCo has led the way in touch screen integration, starting with their designs in 1997. The S21 takes this further with two multi-touch screens, each displaying 10 channel strips, allowing operators to control up to 20 channels at once. The drag-and-drop functionality allows for custom layouts, and the HTL encoder ring functionality ensures channels, aux, and group sections are easy to identify.
Intuitive Control and Layout:
The S21 features a drag-and-drop channel layout system, making mixing and rearranging banks simple. With customizable fader locations, control groups, and matrix assignments, the console is designed for easy navigation and efficient mixing.
Interfacing and Expandability:
The S21 is equipped with dual DMI (DiGiCo Multichannel Interface) option card slots for compatibility with MADI, Dante, Optocore, Waves SoundGrid, and more. Available modules include:
- DMI-DANTE
- DMI-HYDRA 2
- DMI-MADI-B
- DMI-MADI-C
- DMI-OPTO
- DMI-AVIOM
- DMI-ADC
- DMI-AES
- DMI-DAC
- DMI-SOUNDGRID
Construction:
The S21 is built to DiGiCo’s high standards, featuring aerospace-grade aluminum extrusions, durable polycarbonate overlays, and RGB LED Hidden Till Lit technology. The console’s tactile controls, including touch-sensitive faders and encoders, provide a professional, intuitive mixing experience.
Options:
Additional options for the S21 include:
- D-Rack
- Waves SoundGrid Module
- Little Red Box
- Little Blue Box
- SD-Rack (with solutions box or Optics)
- SD-MINI Rack (with solutions box or Optics)
- SD-NANO Rack (with optics only)
Key Features:
- Stealth Digital Processing: Super FPGA Processor (40-bit floating point)
- 96kHz/48kHz Sampling Rate
- 40 Input Channels: 40 Flexi Channels (Mono or Stereo Inputs, up to 80 XLR)
- 46 Output Busses: 16 Flexi Busses (Mono or Stereo, up to 32 XLR)
- 10 Input x 8 Output Matrix
- 2 Solo Busses: Mono/Stereo
- Integrated 48 Channel Recording Interface: USB2.0 Type B
- 2 x 10” Multi-Touch Screens
- 21 Moving Faders (Touch Sensitive)
- Touch Sensitive Rotaries with Integrated Switch & HTL
- Multiple I/O Options: 2 DMI Multi-Channel Interface Slots (up to 64 I/O per DMI slot)
- Ethernet, DVI, GPI/GPO: Networking and external monitor support
- Bank Layout: 8 Customizable Banks of 10 Faders (all customizable)
With this combination of groundbreaking features and design, the DiGiCo S21 is a game-changing console, delivering exceptional performance and flexibility at an affordable price point.
