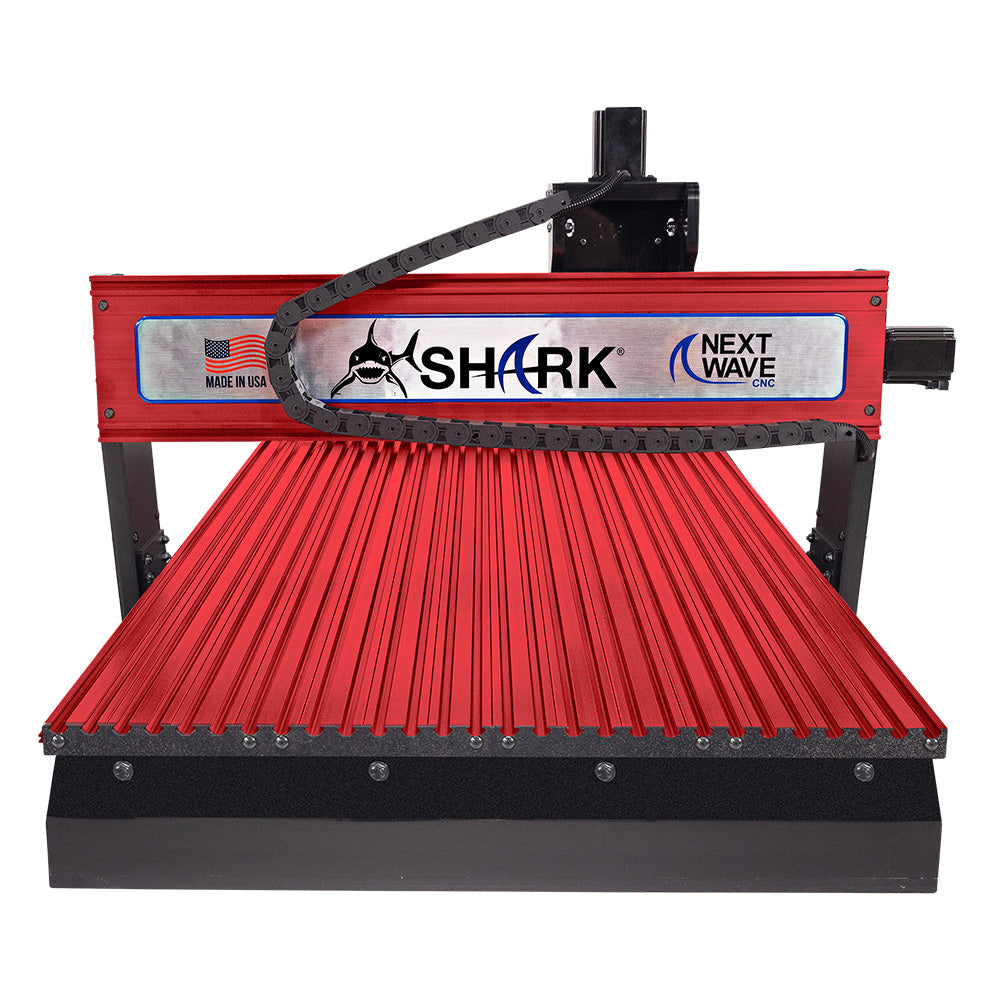

The Shark HD520 will handle all your machining needs, whether it’s in a home shop environment or on the production floor. It comes partially assembled, and with everything you need to get set up and running: the latest version of Vectric VCarve Desktop design software, a color pendant controller, 2 hold-down clamps, carbide V-bit, Next Wave Ready2Control Software, and Next Wave CNC’s exclusive, patented Virtual Zero Unlimited software.
The Shark HD520 features a 28" x 63” table, an extruded aluminum router mount for 3.5” barrel routers or Next Wave’s water-cooled spindle system, and robust linear gantry rails. The HD520 can be pendant or computer-controlled and perfect for projects such as carving plaques, signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics.
This CNC router offers 3D carving capability with a 3D model library included. It also offers two control options:
- Using the included Vectric VCarve Desktop Design Software, you create your project and transfer it to a USB drive which plugs directly into the LCD pendant. The convenient touch screen Pendant interface eliminates the need for a computer controlling the CNC in your shop.
- For more control interactivity, you can run the Shark HD520 from your computer with the Ready2Control program. This lets you use the exclusive patented Virtual Zero Unlimited program. This program will adjust your design to fit curves and angles that would be impossible on other brands of machines. (Computer and flash drive not included).
Features
- LCD Color Touch Screen Pendant
- Vectric VCarve Software
- Ready2Control with Virtual Zero Unlimited Technology
- Linear guides and bearings on the gantry
- Anti-backlash, wear-compensated leadscrews on all axes
- Aluminum gantry backplate for heavy machining capabilities
- Aluminum router mounting clamp
- Steel encased gantry legs for increased rigidity
- Automatic on and off control
- USB interface
- Two-year warranty on parts and labor
- Lifetime tech support
Specs
Table dimensions: 28" x 63"
XYZ travel: 25" x 50" x 7"
Overall dimensions (W x L x H): 36-1/4" x 63" x 24-1/2"
Power requirements: 120V, 60Hz, 10A fuse, Single Phase
Surge protection requirements: 15A
Includes
- HD520 CNC
- Latest edition of Vectric VCarve Desktop design software
- Ready2Control software
- Virtual Zero Unlimited Technology
- (2) Hold down clamps
- Carbide V bit
- Color Touch Screen pendant controller system
