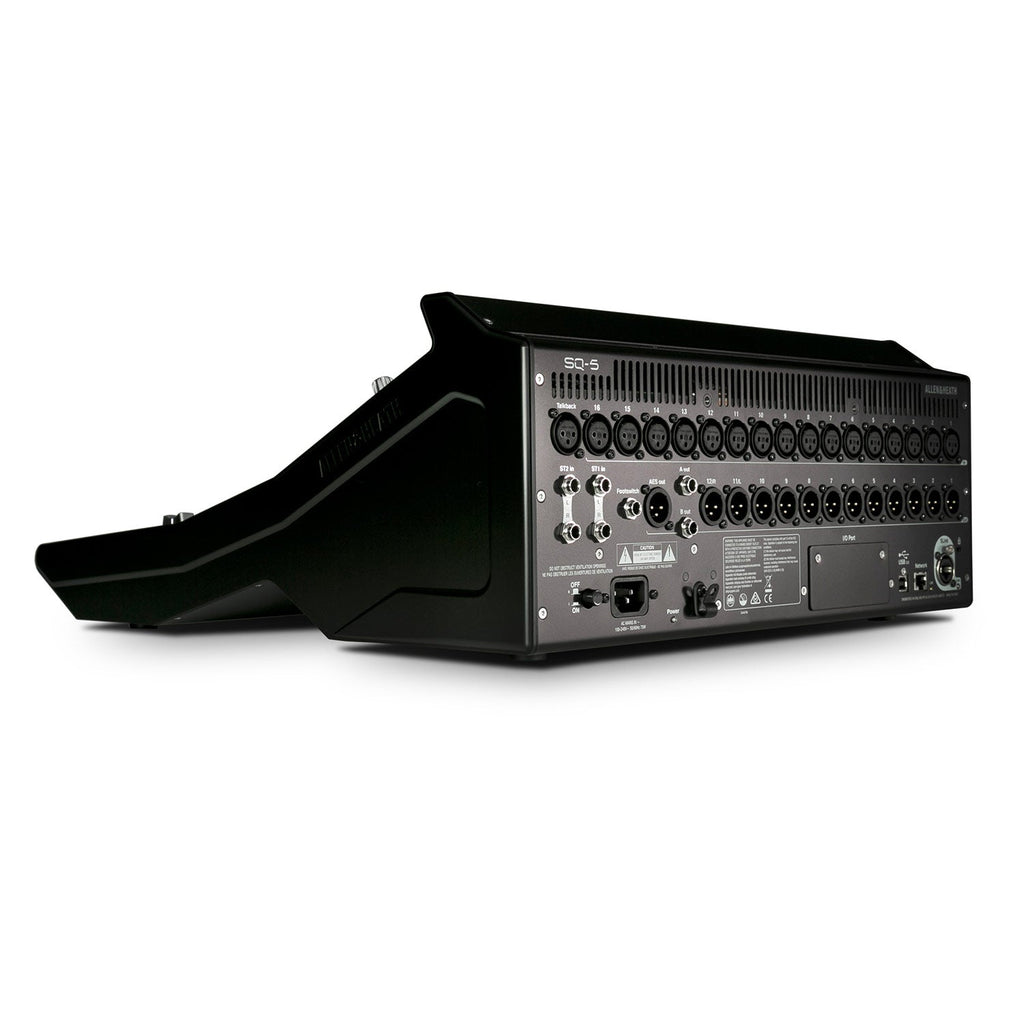

SQ-5 High-Performance Digital Mixer
The SQ-5 is a cutting-edge digital mixer powered by Allen & Heath’s advanced 96kHz XCVI FPGA engine. Designed for demanding live sound scenarios, it delivers pristine audio quality with ultra-low latency of less than 0.7ms, ensuring exceptional clarity and precision. Featuring 16 onboard preamps, 8 stereo FX engines with dedicated return channels, and access to the renowned RackExtra FX library, the SQ-5 is ideal for in-ear monitoring, conferences, live events, and more. Its Automatic Mic Mixing (AMM) ensures seamless handling of multi-mic setups, making it versatile for a wide range of professional audio applications.
Key Features:
-
96kHz XCVI FPGA Processing: High-resolution audio with ultra-low latency.
-
48 Input Channels: Handles complex mixes effortlessly.
-
DEEP Processing Ready: Integrates high-quality preamp and compressor emulations directly into the mix.
-
Flexible Outputs: 12 stereo mixes + LR, 3 stereo matrices, and AES output.
-
8 Stereo FX Engines: Equipped with studio-quality effects and dedicated returns.
-
7” Capacitive Touchscreen: Intuitive control with customizable channels.
-
Expandable: Connect up to 48 mic inputs using SLink port and Allen & Heath expanders.
-
64-Channel I/O Port: Supports Dante, Waves, and other audio networking standards.
-
Direct Recording: 96kHz multitrack recording via USB (SQ-Drive).
-
Built for Durability: All-metal chassis with rugged construction for live performances.
DEEP Processing for Premium Sound
The SQ-5's DEEP processing architecture allows seamless integration of compressor and preamp emulations directly into input and mix channels. These high-quality plugins operate with zero latency, ensuring superior sound without added complexity.
The Perfect IEM Mixer
With 12 stereo mixes, parametric and graphic EQ on each mix, and ultra-low latency, the SQ-5 is perfectly suited for in-ear monitoring setups. Its compact and rugged design makes it a reliable choice for both touring and fixed installations.
Expandable System
The SQ-5 features 16 onboard mic preamps for standalone operation, expandable up to 48 mic inputs via SLink port and compatible Allen & Heath expanders. This flexibility ensures seamless integration with other SQ mixers or dLive systems.
Advanced Networking Capabilities
The mixer supports leading audio networking standards, with options for Dante or Waves audio cards, enabling integration into complex systems or digital splits for FOH and monitor applications.
Flexible Multitrack Recording
The SQ-Drive feature provides direct multitrack or stereo recording at 96kHz to a USB drive, while the built-in 32x32 USB audio interface ensures DAW compatibility for recording, playback, and control.
Automatic Mic Mixing
Integrated Automatic Mic Mixing (AMM) simplifies multi-mic environments, making it ideal for conferences, panel discussions, and TV productions. Fully integrated, it eliminates the need for external processing.
Intuitive Mixing Experience
The SQ-5 features a high-resolution touchscreen, illuminated encoders, and customizable channels with drag-and-drop functionality, color coding, and custom naming for intuitive operation. Chromatic channel metering provides clear level indications at a glance.
RackExtra FX
Equipped with 8 stereo FX engines and the RackExtra FX library, the SQ-5 delivers studio-grade effects, including reverbs, delays, and modulators, all with dedicated stereo returns.
ME Personal Mixing System Compatibility
The SQ-5 integrates with the ME Personal Mixing System, enabling performers to control their own monitor mixes. Multiple ME-1 or ME-500 personal mixers can connect via the SLink port or expanders for ultimate flexibility.
The SQ-5 is engineered for professional sound engineers who demand superior performance, flexibility, and reliability, making it an essential tool for live sound, recording, and broadcast applications.
